Technical parameters of the chamber:

• Measurement methods:
  • Far Field (FF),
  • Spherical Near Field (SNF)
• Measurement frequency range 700 MHz – 40 GHz
• Antenna standards from the Czech company RFspin s.r.o.:
  • 2 Double Ridged Horn Antenna DRH370 (370 MHz – 6 GHz);
  • 2 Double Ridged Horn Antennas DRH10 (740 MHz – 10.5 GHz),
  • 2 Double Ridged Horn Antennas DRH40 (4 GHz – 40 GHz),
  • 1 Quad Ridged Horn Antenna QRH11      (730 MHz – 11 GHz)

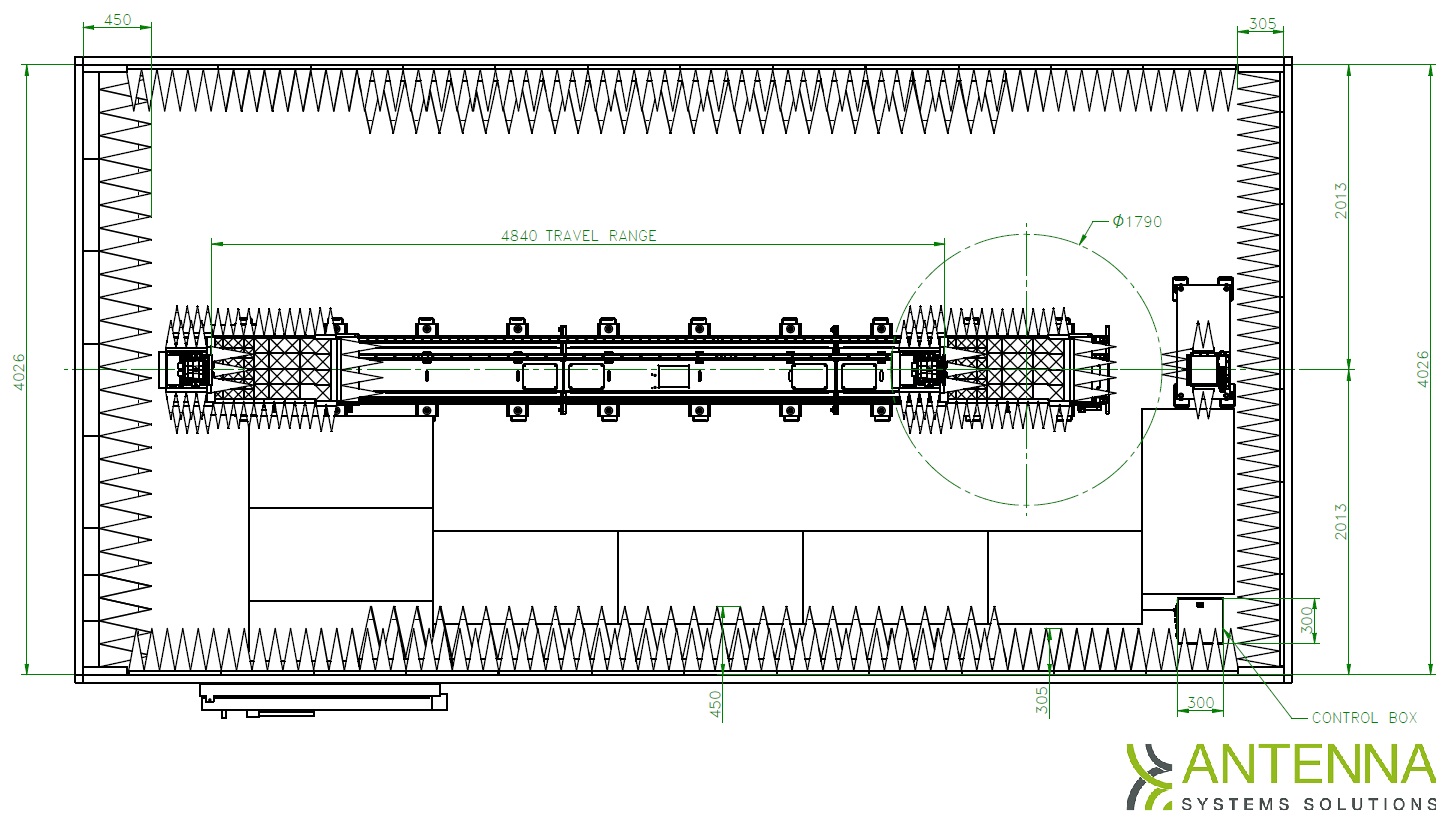

• Internal dimensions between absorbers: length: 7.1 m, width: 3.1 m, height: 2.4 m
• Shielding effectiveness: 500 MHz – 1 GHz >=SE 110 dB, 1 – 40 GHz SE >= 80 dB

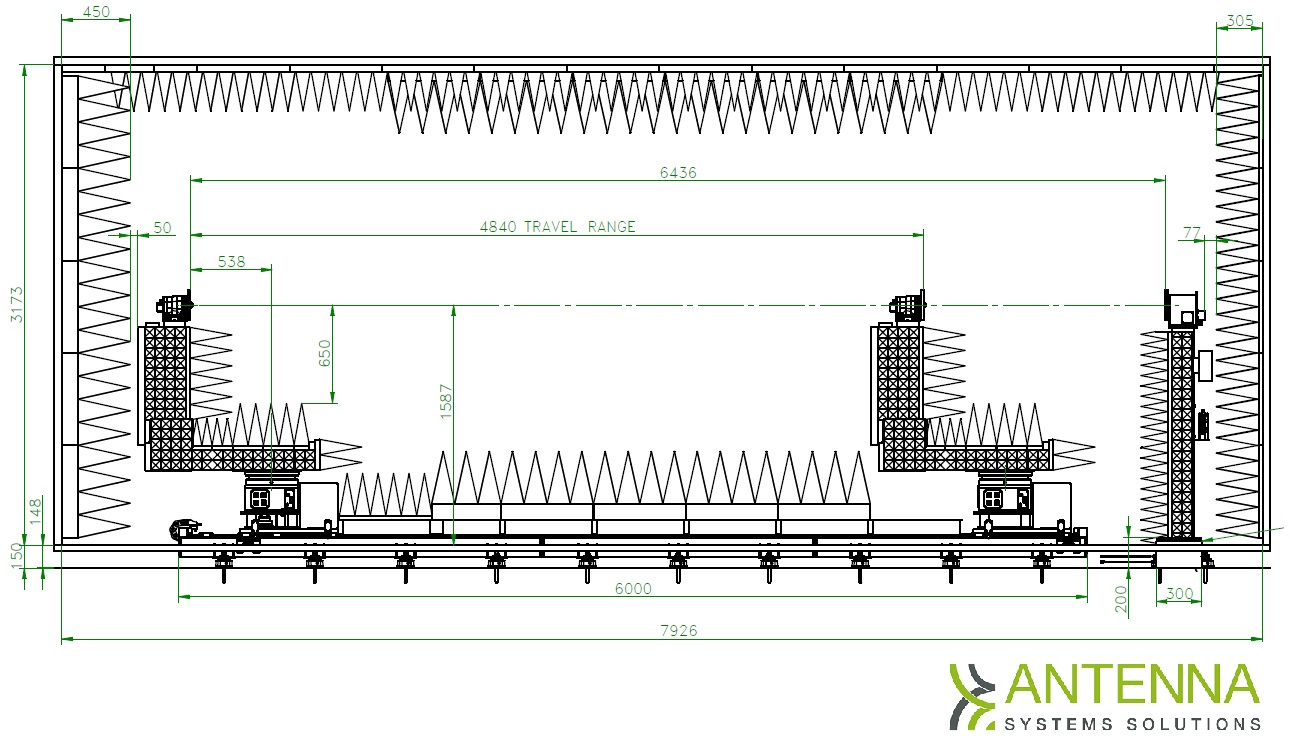

• Distance between antennas (flanges on positioners) max: 6.4 m
• Load capacity of positioning system (weight of tested device) max. 50 kg
• Maximum dimensions of tested device: 1.2 m

Chamber components:

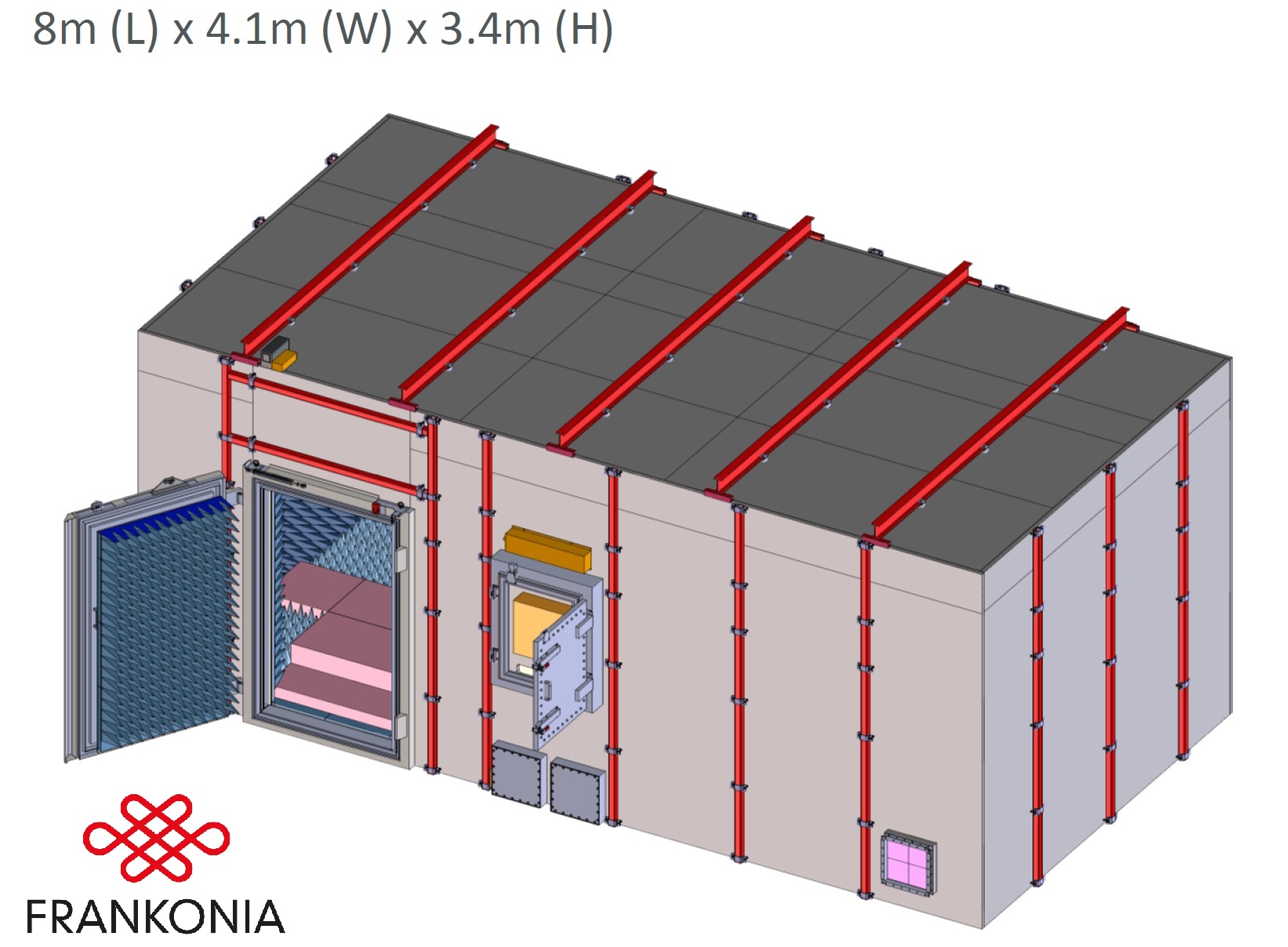

• Chamber manufacturer Frankonia

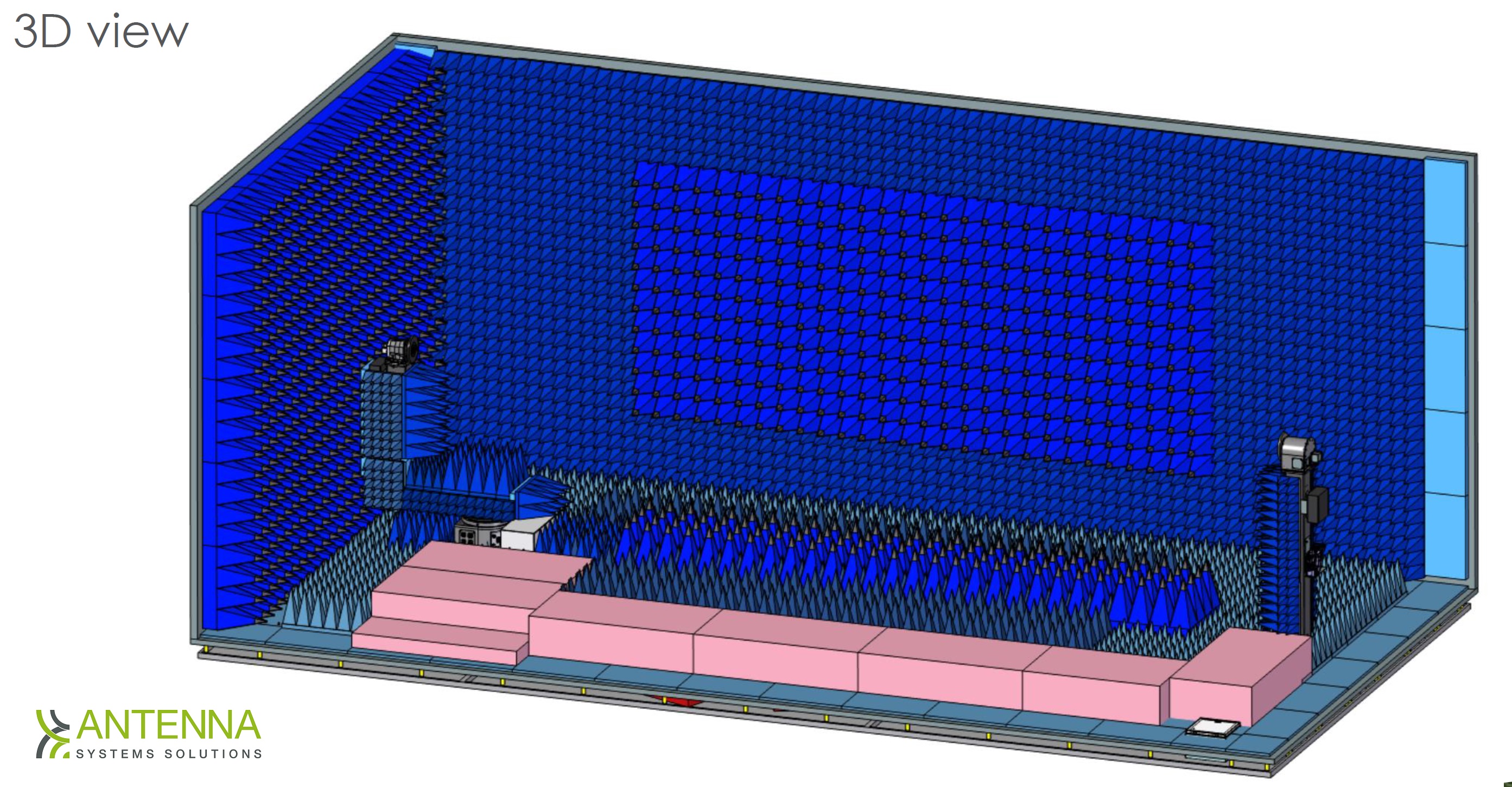

• Positioning system Antenna Systems Solutions (ASYSOL)
• Vector analyzer Copper Mountain Technologies S5243 (10 MHz - 44 GHz)
• Set of calibrated reference antennas for gain measurement by ASYSOL
